DC / DC 380V 54V Flatpack2 DC Power Supply Cabinet 108kW CDT32442.xxx 3000W SHE Module

Product Categories
Beijing Guoguang Xingda Technology Co.,ltd
Contact Now

DC / DC 380V 54V Flatpack2 DC Power Supply Cabinet 108kW CDT32442.xxx 3000W SHE Module

Brand Name : Eltek

Model Number : CDT32442.xxx

Certification : IEC/EN 62368-1:2020/AC:2020/A11:2020

Place of Origin : China

MOQ : 10

Price : USD9300-19600

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200sets/month

Delivery Time : 1 week * depends on quantity

Packaging Details : Original Packed by Carton

Model : Flatpack2 DCDC 380V 54V System 108kW

Part number : CDT32442.xxx

Input Voltage (operating range) : 260 - 400 VDC

Maximum current : 442.8 A (3x 147.6 A)

Protection (module level) : Fuse, shutdown when VIN is out of range

Protection (cabinet level) : 3x 160 A MCCB

Output Voltage (default) : 54.5 VDC

Voltage (adjustable range) : 50 - 55 VDC

Max power, nominal input : 108 kW

Contact Now

Flatpack2 DC/DC 380V/54V 108kW System CDT32442.xxx 3000W SHE Module Smartpack2 Control and Monitoring

  • Using the Flatpack2 DCDC 380/48 3000 SHE module with Eltek’s feature-rich Smartpack2 control and monitoring unit enables sites to benefit from utilizing 380 VDC as a transmission voltage, either for a competitive alternative to traditional UPS in Data Centers, or for central power plants in Telecom site expansions.
  • Integrating state-of-the-art, super high efficiency converter modules with Eltek’s feature rich Smartpack2 monitoring and control unit, the high performance Flatpack2 DC/DC 380V/54V Power System converts the 380 Vdc bus voltage down to a regulated 54 Vdc with a module efficiency of 98.2 %.

    Key features

    • Input protection
    • Versatility
    • Scalability
    • Modular – build as your load grows
    • Super High Efficiency (SHE)
    • Smartpack2 controller
    • Hot pluggable
    • 50-55 Vdc adjustable output
    • Patented SHE technologyDC / DC 380V 54V Flatpack2 DC Power Supply Cabinet 108kW CDT32442.xxx 3000W SHE Module

Product Tags:

54V DC Power Supply Cabinet



380V DC Power Supply Cabinet



CDT32442.xxx


Buy cheap DC / DC 380V 54V Flatpack2 DC Power Supply Cabinet 108kW CDT32442.xxx 3000W SHE Module product

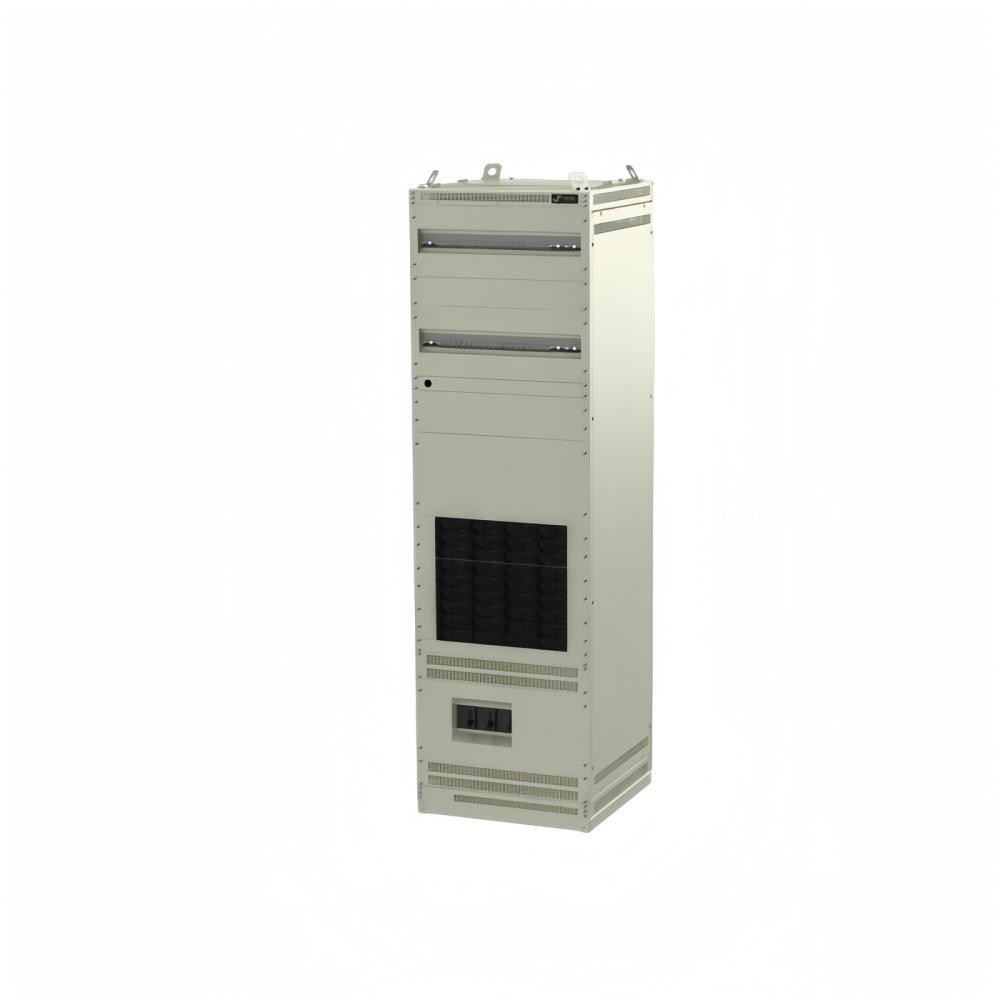

DC / DC 380V 54V Flatpack2 DC Power Supply Cabinet 108kW CDT32442.xxx 3000W SHE Module Images
