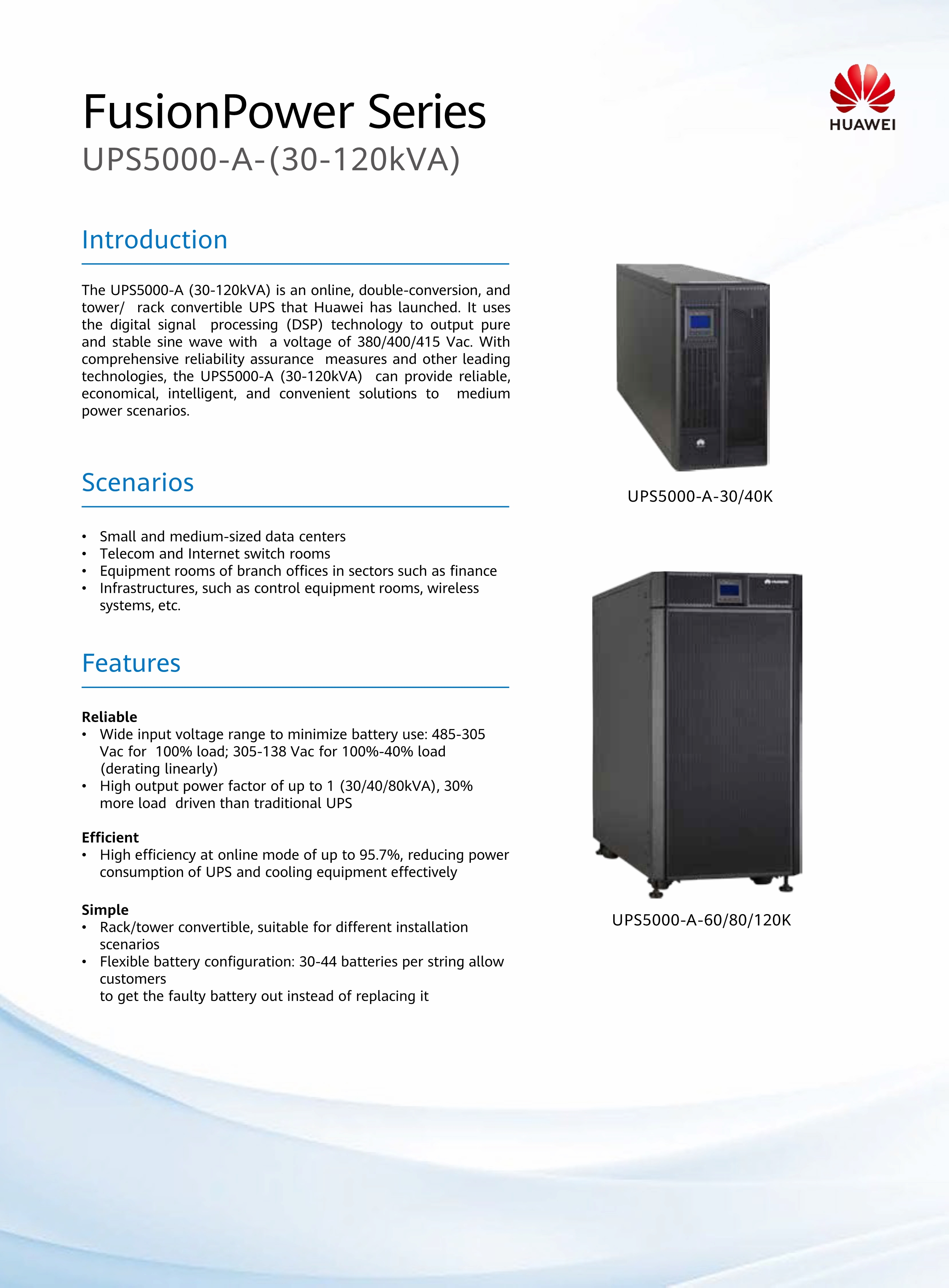

Online Double Conversion Uninterruptible Power Supply UPS 80kVA / 80kW UPS5000-A-80K

Brand Name : Huawei

Model Number : UPS5000-A-80K

Certification : CE , UL

Place of Origin : China

MOQ : 1 set

Price : 7200-10500 USD/SET

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100 sets/Month

Delivery Time : 7 days

Packaging Details : Original Packed by Carton

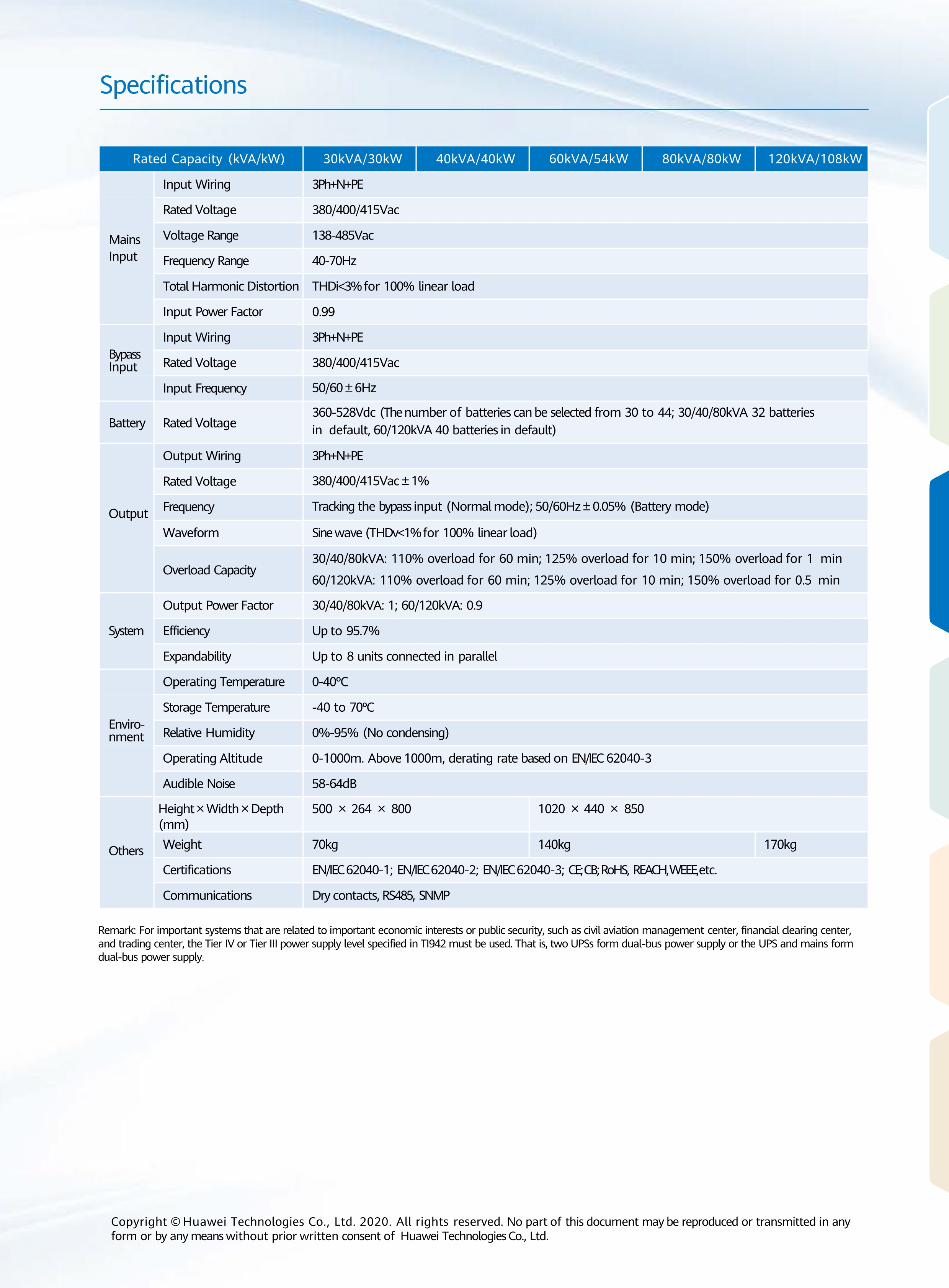

Model : UPS5000-A-80K

Rated capacity (kVA/kW) : 80kVA/80kW

Input Wiring : 3Ph+N+PE

Input Rated Voltage : 380/400/415Vac

Input Voltage Range : 138-485Vac

Input Frequency Range : 40-70Hz

Total Harmonic Distortion : THDi<3% for 100% linear load

Input Power Factor : 0.99

Bypass Input Wiring : 3Ph+N+PE

Bypass Rated Voltage : 380/400/415Vac

Bypass Input Frequency : 50/60±6Hz

Battery Rated Voltage : 360-528Vdc(The number of batteries can be selected from 30 to 44; 30/40/80kVA 32 batteries in default,60/120kVA 40 batteries in default)

Output Wiring : 3Ph+N+PE

Output Rated Voltage : 380/400/415Vac±1%

Output Frequency : Tracking the by pass input (Normal mode); 50/60Hz±0.05%(Battery mode)

Ouput Waveform : Sinewave(THDv<1% for 100% linear load)
