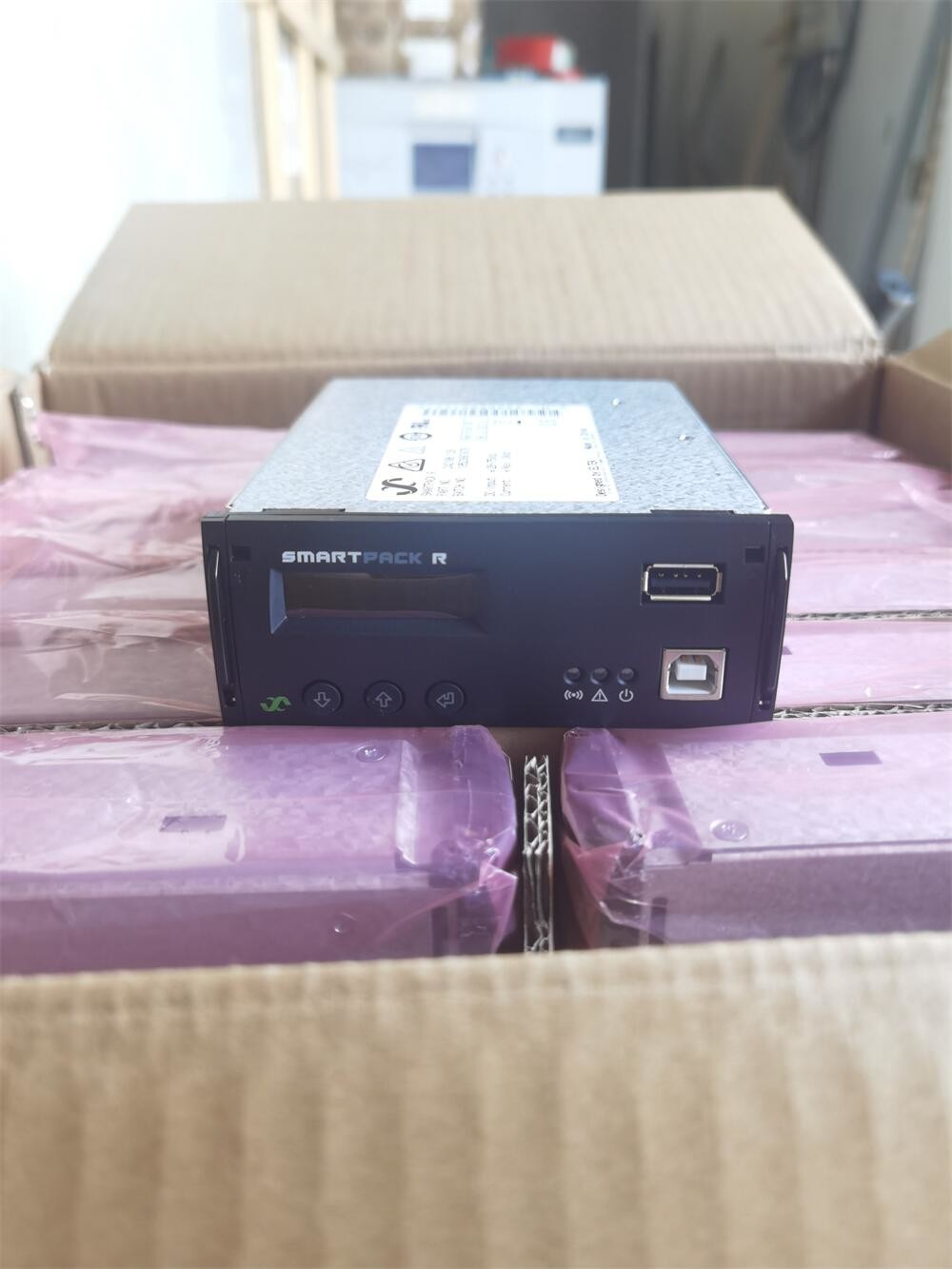

| Model | Smartpack R |
| Part number | 242100.120 |
| INPUT DATA |
| Voltage (nominal) | 10 - 75 VDC |
| Power Consumption | 3 W (display sleep, no dist. CAN Power, LVD activation, no USB power) |
| 25 W (display on, dist CAN Power, LVD activation, USB Power) |
| SYSTEM CONNECTIONS - SYSTEM | |
| MONITORS |
| Voltage sense, system voltage support | 12 VDC, 24VDC, 48VDC & 60VDC |
| Current sense, shunt support | 0 - 20mV, 0-50mV, 0 - 60mV and 0-100mV |
| Battery fuse monitoring | Auxiliary switch NO/NC, Pull up/down |
| Load fuse monitoring | Auxiliary switch NO/NC, Diode Matrix Pull up/down |
| Battery temperature monitoring | AD590 sensor input |
| Battery symmetry monitoring (built in) | 4 x Analog Voltage[0-75V] inputs (12, 24 or 60V blocks) |
| SYSTEM CONNECTIONS - LVD | |
| CONTROL |
| Battery disconnect | 1 (latched or non-latched supported) |
| Load disconnect | 2 (latched or non-latched supported) |
| GENERIC INPUTS AND OUTPUTS |
| Digital configurations, Inputs #1-6 | Auxiliary switch: NO/NC |
| Analog configurations, Inputs #1-2 | Analog Voltage[0-75V] (Configure as NO, NC, Diode Matrix sense or Voltage sense) |
| Analog configurations, Inputs #3-6 | Analog Voltage[0-75V] (Configure as NO, NC, Diode Matrix sense or Voltage sense) Support: |
| Temperature sense w/ NTC probe |
| Output configurations, Outputs #1-6 | 6x Relay–Dry/Form C - Configurable Normally Open/Closed [Max capacity 75V/2A/60W] |
| CONTROL SYSTEM CONNECTIONS |
| CAN Power | Distributed CAN Power available +/- 500mA |
| CAN Nodes | Support: I/O Monitors, Battery String Monitor, Load/Current Monitor, Fleximonitor, AC Mains Monitor |
| & Smartnode (legacy) |
| USER INTERFACE |
| Local | Alphanumeric LCD display (Chinese Traditional and Simplified supported) & 3 keys |
| Ethernet port | 10/100 BASE-T (optional: 1000 BASE-T) IPv4/v6 |
| (eth 0: LAN port) | IP protocols: HTTP (HTML5 Responsive User Interface) / SSL(TLS w/ self-signed certificate |
| (eth 1: Craft port w/DHCP, USB Device | generator or load authenticated certificates), SNMP v3 w/Generic MIBs & Enterprise MIB type: SP2- |
| port) | MIB (Eltek Branch 10), MODBUS TCP and pComm UDP (PowerSuite), VPN, VLAN, NTP, SFTP &RADIUS |
USB Host
USB Device | Flash Drive for SWFW upgrade and XML configuration file loading |
| Config read from Smartpack 1 Gen USB Device port |
| wlan0: WiFi dongle for wireless craft port, wwan0: 4G USB Cellular Modem |
| eth2: Ethernet Gigabit |
| PC – pComm – Windows PowerSuite |
| Serial ports | RS-232 and RS-485 on RJ11 connector |
| Serial protocols: MODBUS RTU Slave, MODBUS RTU/ASCII Master (several pre-defined types and |
| full generic configurable data reader available), Modem Call-Back/SMS reporting (PSTN or GSM) |
| and pComm (PowerSuite) |
| GENERAL SPECIFICATIONS |
| Dimensions (WxHxD) | 109 x 44 (1U) x 156 mm (4.3 x 1.75 x 6.1”) [Chassis dept: 140 mm] |
| Temperature Range | Operating -20 to +65˚C (-40 to 149˚F) |
| DESIGN STANDARDS |
| Electrical safety | UL 60950-1, 2ed, 2014-10-14, EN 60950-1:2006/A2:2013 |
| EMC | ETSI EN 300 386 V.2.1.1, EN 61000-6-1(2007) /-2(2005) /-3(2012) /-4(2011), |
| FCC CFR47 Part 15B section 109: 2010 |
| Environment | ETSI EN 300 019: 2-1 v2.3.1 (Class 1.2), 2-2 v2.4.1 (Class 2.3) & 2-3 v2.4.1 (Class 3.2) |
| 2011/65/EU (RoHS) & 2012/19/EU (WEEE) |
| Normal operating conditions as per IEC 62040-5-3:2016 clause 4.2. Other operating conditions as per IEC 62040- |
| 5-3:2016 clause 4.3, must be advised |
| | | |
